They Say:

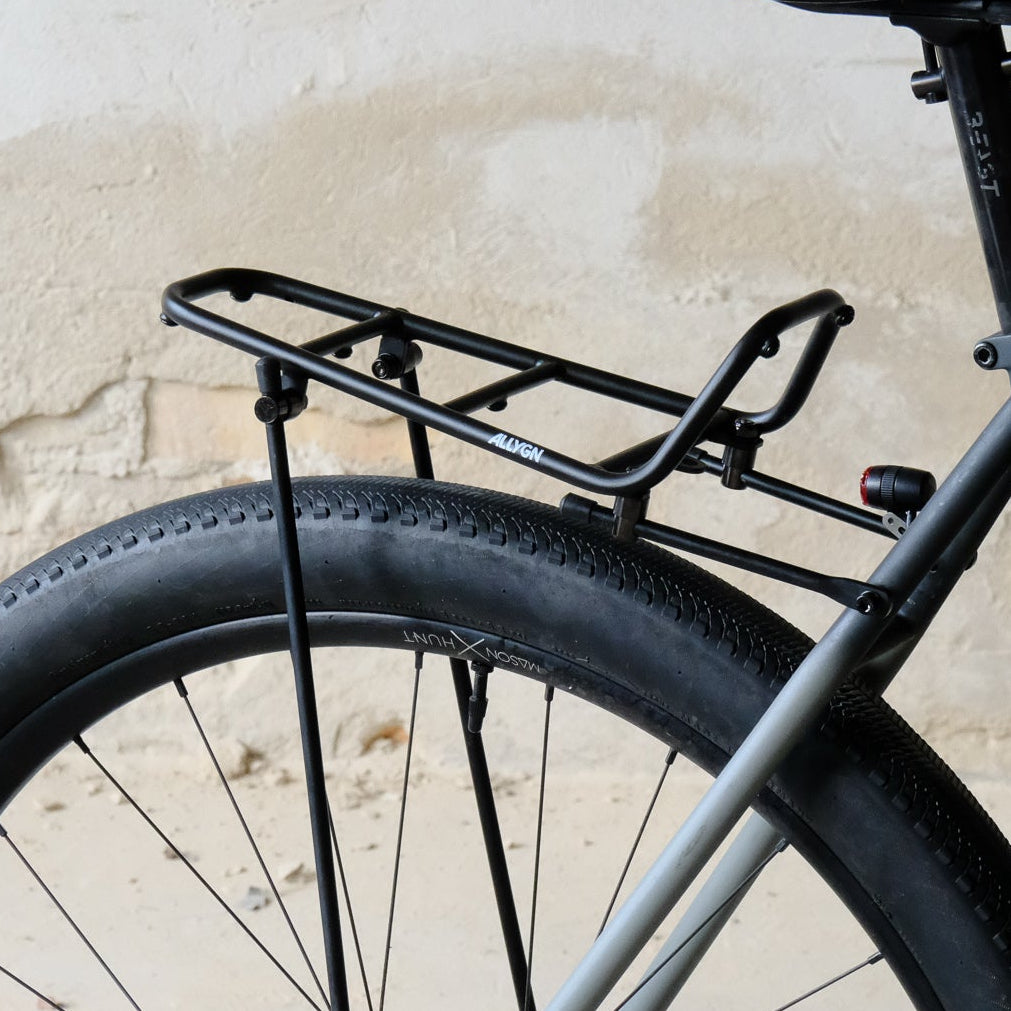

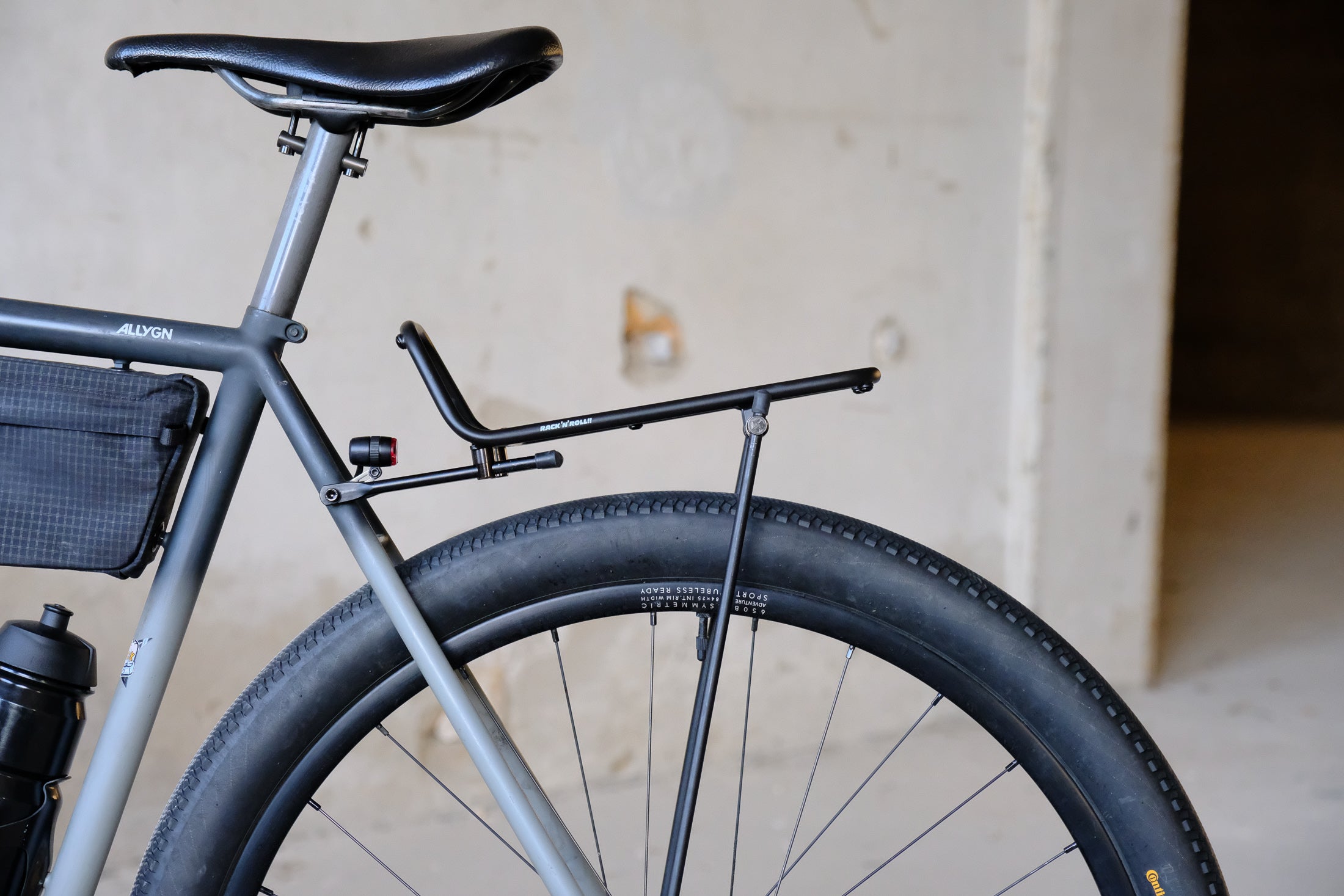

Finally it's here! The ALLYGN Diamond Back Rack is a highly versatile, compact carrier that can be used for lighter loads, such as tents, sleeping bags, dry bags, and more.
We only use the very best materials available, such as super thin-walled, ultra-light, and high-strength seamless 25CrMo4 tubing. All hardware is custom-made specifically for this rack, and we use rust-free, high-grade stainless steel. Each bolt is individually black zinc-nickel plated by hand.
This rack comes with a lot of hardware and can be mounted in various ways on almost any type of bike. We now also include a strip of custom-cut 10 mm wide 3M Helitape for additional rack and paint protection.
Taillights can be fitted with the optional ALLYGN Light Mounting Kit, and the ALLYGN Anybolts allow you to install our Micro Panniers, cargo, or bottle cages on the rear stays. When paired with the Gramm Diamond Back Bag, the rack serves as a rigid platform and can replace your classic seat bag. This rack also works perfcxrtly with the Ortlieb 12L Bikepacking Dry Pack and many others.
FEATURES:
Rack made from strong, thin-wall 10 x 0,8mm seamless 25CrMo4 tubing
All bolts and hardware made from black plated rust-free stainless steel
Aluminum rack stays
Multiple mounting options
6 × M5 underside accessory mounts
3M Helitape for rack protection included
Optional cage and light mounts
Internal light cable routing
Maximum load: 7 kg
WEIGHT:
Rack platform: 235 g
All stays (uncut): 195 g
Basic Mounting hardware: 75 g
Anybolt kit (optional): 80 g
Taillight mounting kit (optional): 15 g
INCLUDED PARTS:
Rear Diamond Rack and the complete basic mounting hardware.
1 x ALLYGN Diamond Back Rack
2 x Long stays, 480 mm
2 x Short stays, 270 mm
5 x Stay-end rubber plugs (1spare)
4 x M6 eyebolts
4 x Barrel washers
4 x M6 washers
4 x M6 nuts
4 x M5 x 16 mm bolts
4 x M5 washers
Allygn Anybolt Kit
6 x M5 eyebolts
6 x Barrel washers
6 x M5 washers
6 x M5 nuts
Allygn Taillight Mounting Kit
2 x Light mount angleplate
2 x M5 x 12 mm bolt
2 x M5 washers
2 x M5 nuts
DIMENSIONS:
Length: 285mm
Usable platform length: 245mm
Widest width: 140mm
Stay mounting width center-center: 114mm
