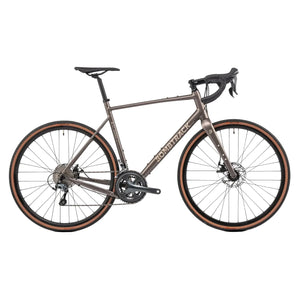

Bombtrack Audax AL - Matt Warm Grey
Shipping calculated at checkout
Need A Size That's Not In Stock?
Drop us a line for the latest availability.
They Say...
Our Audax aluminium model is for lovers of 700C wheels and 2x close ratio gearing systems. Featuring the same lightweight hydroformed frameset as the 650B version with all the same benefits and accoutrements to help you carry your kit, but now with extra zip from the 700 x 34 mm WTB Byway tyres - what they give up in volume they deliver in speed. Shimano’s Tiagra 4700 drivetrain complete with a 50 / 34T chainset and 11 - 34T cassette helps to keep your cadence super smooth and TRP Spyre C flat mount disc brakes deliver all the stopping power you could ask for. The perfect bike for long-distance efforts against the clock.
Specification:
| Color 1 | Matt warm grey |
| Color 2 | - |
| Color 3 | - |
| Frame | 6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell |
| Fork | Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts |
| Handlebar | Seido CX-10 drop bar, 31.8 mm, 10 ° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Seido Meander forged aluminium stem, -6 ° |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Shimano Tiagra ST-4700 STI mechanic |
| Shifter | Shimano Tiagra ST-4700 STI 2 x 10 |
| Brakes | TRP Spyre C flat mount mechanic disc brakes |
| Rotor | Tektro 160 mm rotors |
| Crankset | Shimano Tiagra FC-4700, 24 mm spindle |
| BB | Seido T47 internal sealed BB for 24 mm spindle |
| Pedals | - |
| Chain | KMC X10 chain, 1/2'' x 11/128'', 114L |
| Chainring | Shimano Tiagra, 50 T / 34 T |
| Cassette | Shimano CS-HG500 10-speed, 11 - 34 T |
| Front derailleur | Shimano Tiagra FD-4700-F |
| Rear derailleur | Shimano Tiagra RD-4700-GS |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | Seido Sinus i21, tubeless ready, 32h |
| Rear rim | Seido Sinus i21, tubeless ready, 32h |
| Saddle | Seido Comp saddle |
| Seat post | Seido Beech 27.2 mm x 350 mm |
| Seat clamp | Bombtrack Prime 31.8 mm |
| Front tire | WTB Byway TCS 700C x 34C, tubeless ready |
| Rear tire | WTB Byway TCS 700C x 34C, tubeless ready |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | 10.3 kg (size L) |
| Weight frameset | 1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
FRAME GEOMETRY
| Bike Size | XS | S | M | L | XL |
| Wheel size | 700C | 700C | 700C | 700C | 700C |
| Seat Tube Length | 470 | 500 | 530 | 560 | 590 |
| Horizontal TT length | 505 | 527 | 551 | 569 | 592 |
| Seat Angle | 75.0 ° | 74.5 ° | 74.0 ° | 74.0 ° | 73.5 ° |
| Head Angle | 71.0 ° | 72.0 ° | 72.0 ° | 72.0 ° | 72.0 ° |
| Headtube Length | 100 | 120 | 150 | 180 | 205 |
| BB Drop | 70 | 68 | 68 | 65 | 65 |
| Chainstay Length | 420 | 420 | 420 | 420 | 420 |
| Fork Offset | 53 | 53 | 53 | 53 | 53 |
| Trail | 64 | 57 | 57 | 57 | 57 |
| Wheelbase Length | 991 | 1000 | 1021 | 1041 | 1059 |
| Standover | 733 | 759 | 787 | 818 | 843 |
| Reach | 368 | 379 | 390 | 401 | 411 |
| Stack | 512 | 533 | 561 | 587 | 611 |
| Front Center | 581 | 590 | 610 | 630 | 647 |
| Axle to Crown | 385 | 385 | 385 | 385 | 385 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
