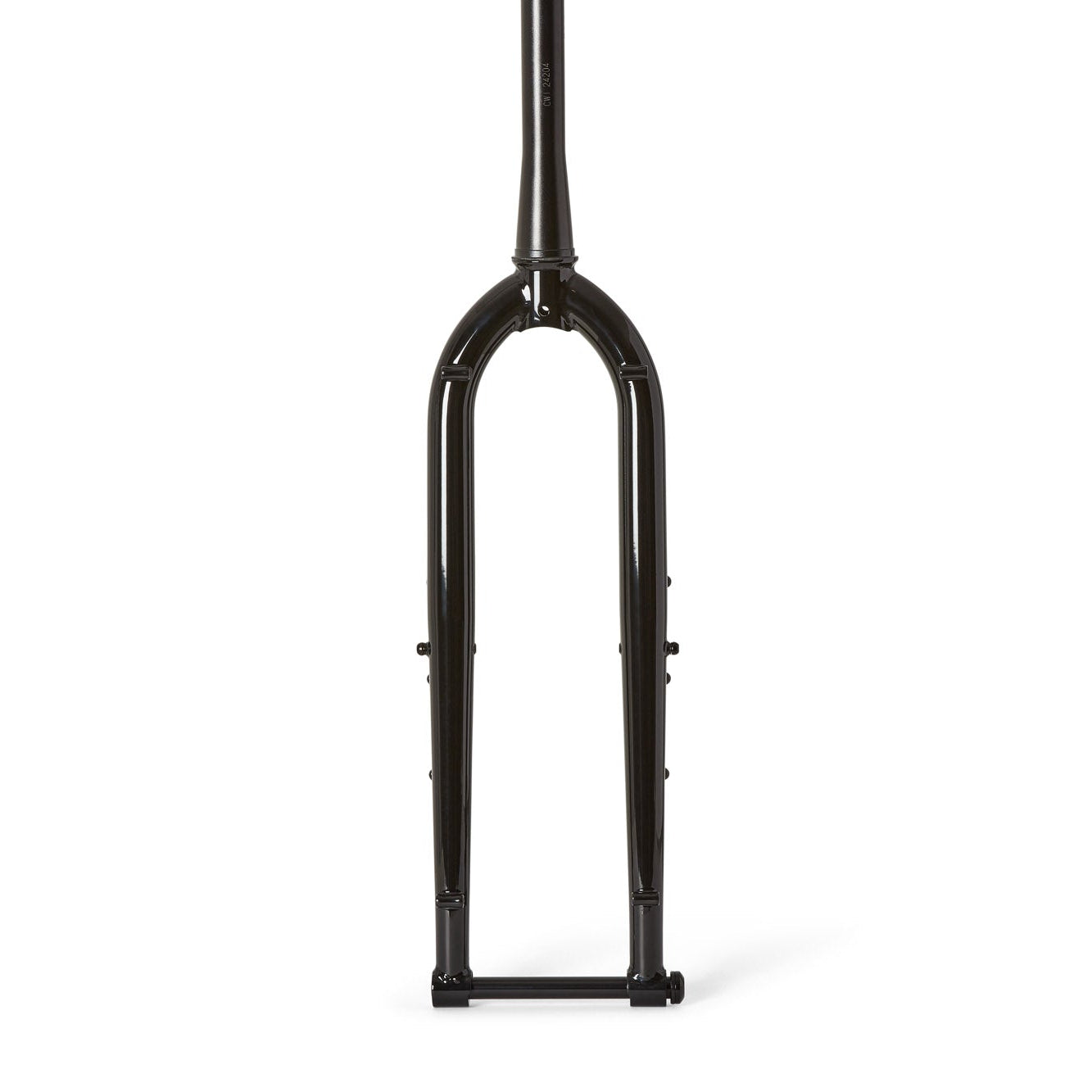

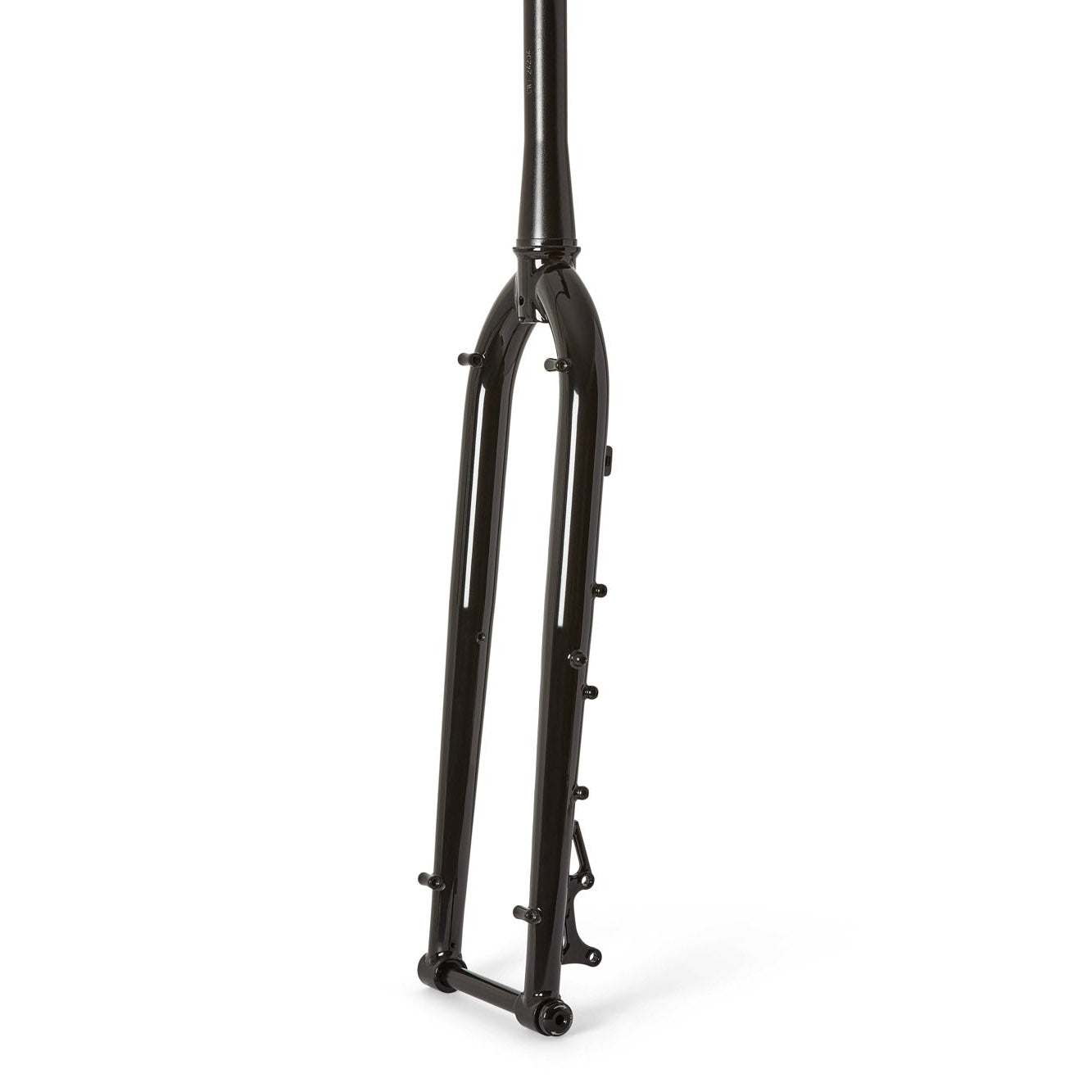

This is the steel fork that appears on the current incarnation of the Big Bro. Although designed with the Big Bro in mind, this fork can be purchased separately as an upgrade for a wide range of other mountain bikes. It has a 483mm A-C which makes it approximately equivalent to a sagged 100mm suspension fork. The fork has clearance for large volume tyres up to 3", triple cage mounts, rack mounts and is compatible with lowrider racks and panniers.
Two versions: boost spaced (110mm) and non-boost spaced (100mm). The non-boost version does not have the two rack mounts at the top front of the fork legs.
Axle-to-crown - 483mm
Offset - 46mm
Steerer - 300mm, tapered 1 1/8 – 1 1/2″
Tyre Clearance - 29 x 3", 27.5 x 3"
Hub Spacing - 110mm (Boost) or 100mm (Non-Boost)
Weight (uncut) - 1.37kg
Brake compatibility - IS mount max 203mm rotor
Axle Spec - 110x15mm M15x1.5Px158mm (axle included) or 100x15mm - M15x1.5Px148mm (axle included)
