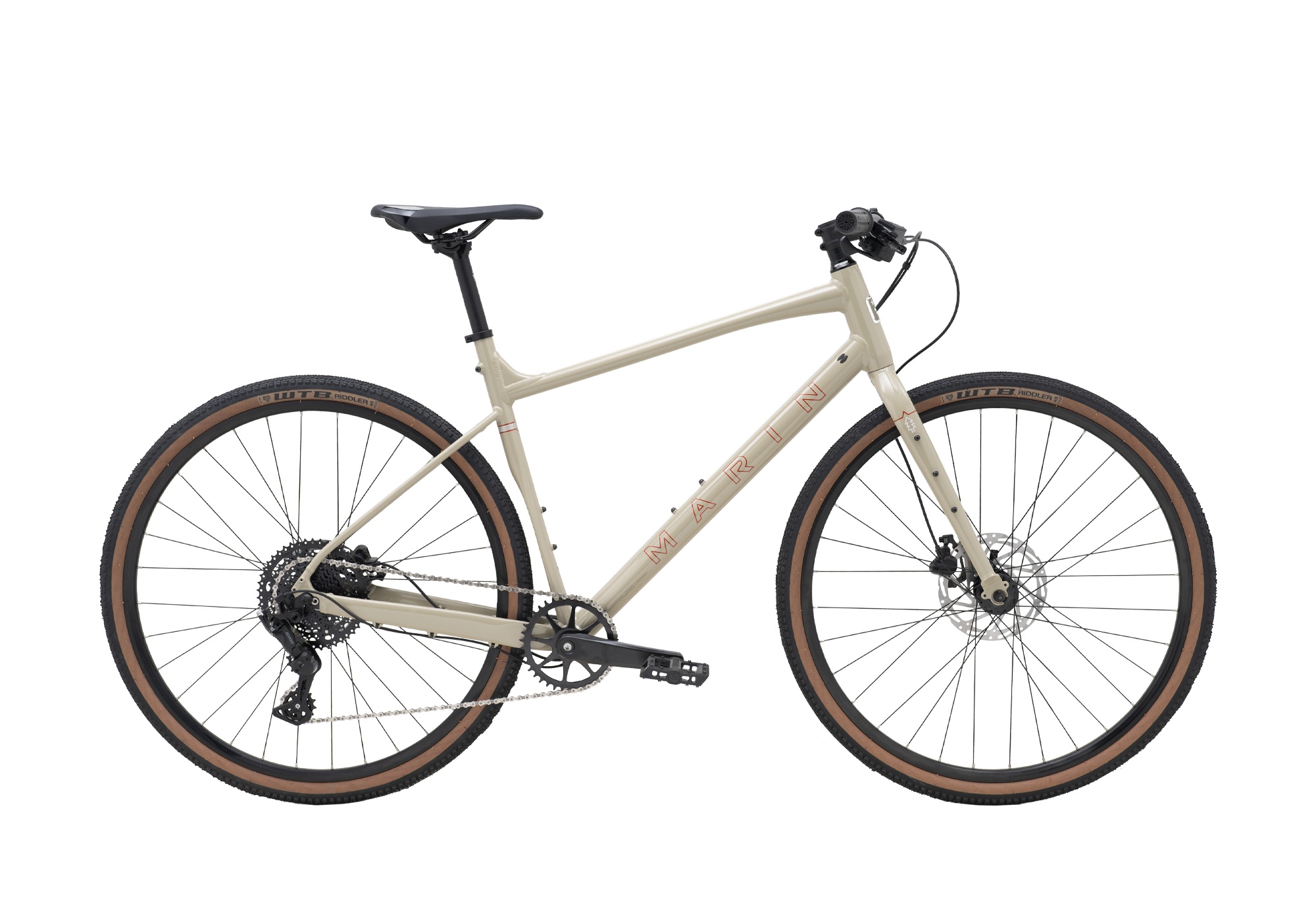

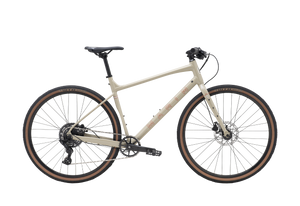

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Fork
CrMo Steel, Straight-Blade, IS Disc Mount, Fender and Rack Eyelets
Frame
Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
Rim
Marin Aluminum Double Wall, Disc Specific
Hub Rear
Forged Aluminum Alloy, Disc Specific, 32H
Hub Front
Forged Aluminum Alloy, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
WTB Riddler, 700Cx45mm
Derailleur Rear
microSHIFT Advent Medium Cage Clutch
Shift Lever
microSHIFT Advent Quick Trigger Pro Shifter 1x9
Crankset
Alloy Crank, Steel Narrow-Wide Chainring, 38T
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Cassette
microSHIFT Advent H-Series 9-Speed, 11-46T
Brakes Front
Tektro HD-M280 Hydraulic Disc, 160mm Rotor
Brakes Rear
Tektro HD-M280 Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro Hydraulic
Handlebar
Marin MiniRiser
Stem
Marin 3D Forged Alloy
Grips
Marin MTB
Headset
FSA, Orbit CE No.8B
Seatpost
Marin Alloy
Saddle
Marin DSX
Pedals
Nylon Platform
