They Say...

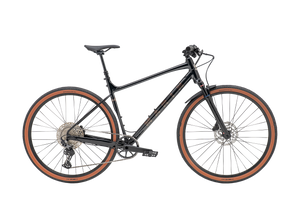

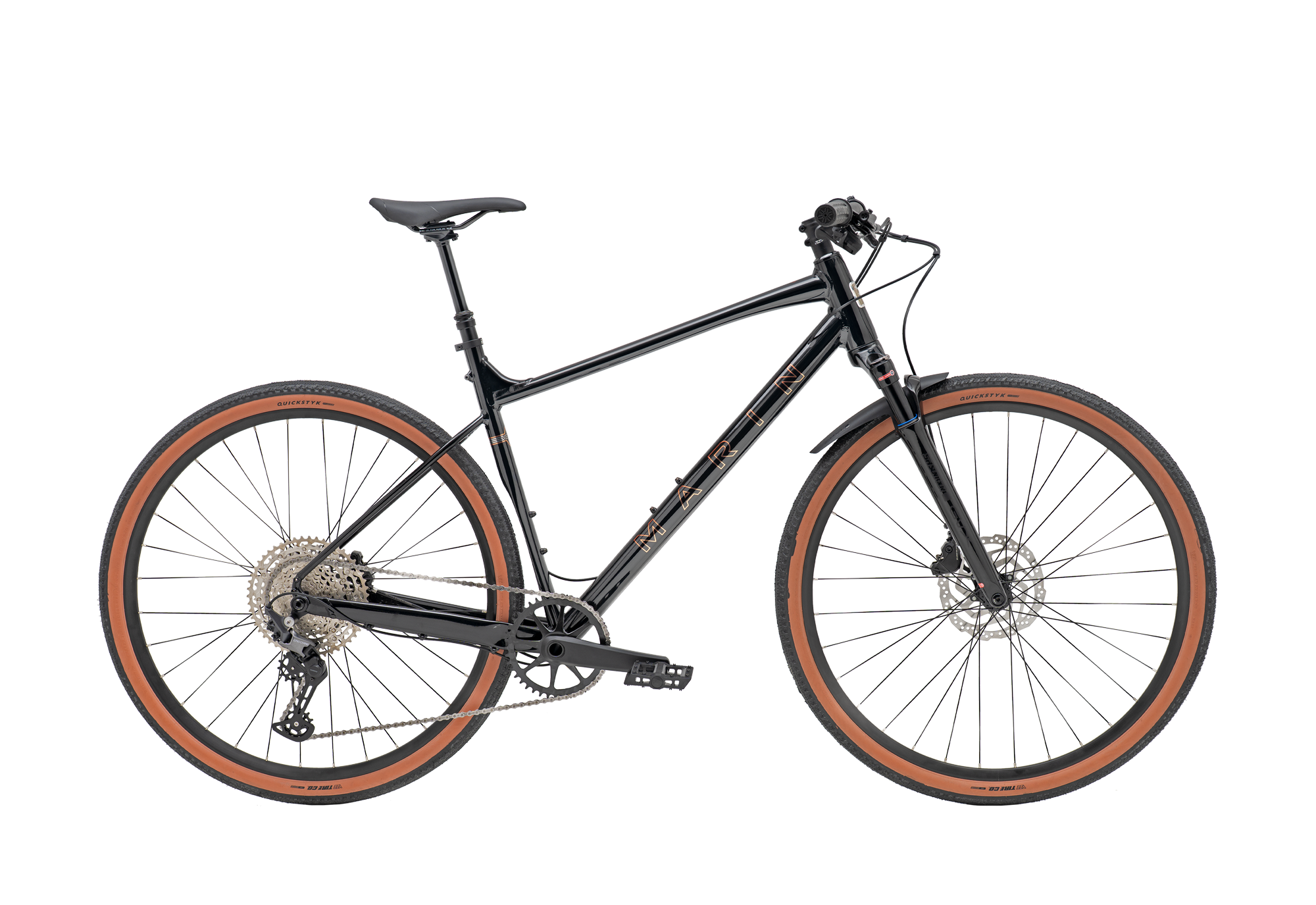

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Frame
Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Front Suspension
SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Rim
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hub Rear
Forged Aluminum, 142x12mm, Disc Specific, 32H
Hub Front
Forged Aluminum, 100x12mm, Disc Specific, 32H
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
Derailleur Rear
Shimano Deore, RD6100, 12-Speed
Shift Lever
Shimano Deore, SLM6100, 12-Speed
Crankset
Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket
Sealed Outboard Bearing
Chain
KMC X12
Cassette
Shimano Deore, CSM6100, 12-Speed, 10-51T
Brakes Front
Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
Brakes Rear
Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
Brake Levers
Shimano Hydraulic
Handlebar
Marin MiniRiser
Stem
Marin 3D Forged Alloy
Grips
Marin MTB
Headset
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
TranzX YSP38J, Size S 70mm, Size M-XL 110mm Travel, 27.2mm
Saddle
Marin DSX
Pedals
Nylon Platform
Extras
Bolt-On Thru-Axles F and R
