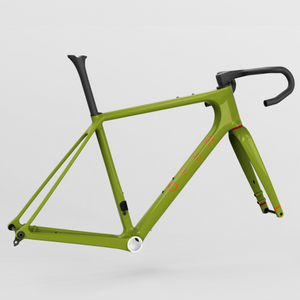

Open UP 2.0 Frame and Aero Fork - Farn Green
Shipping calculated at checkout
Get In Touch To Order
Woah, this product is kind of a big deal!
Stock may be scarce, or perhaps there are custom features that we need to discuss. Drop us a line, and let's get it sorted.
Description
What We Say...
The Open UP has always been our favourite carbon gravel bike. With a brand new frame design full of upgrades, you'd have to look far and wide to find a frameset so pretty and so goddamn fast!
The UP now includes a proprietary integrated adjustable cockpit so once an order is placed we will get in touch with options!
What They Say...
The U.P. 2.0 follows the iconic original U.P. that defined modern gravel bikes in the past ten years. With even crisper handling and more tire clearance (up to 46mm true width), it is ready for every adventure from fast group rides to tough bikepacking trips. But most of all, it is for riders who love the freedom of wherever the ride takes you.
The ultralight OPEN B.A.R. cockpit offers 15mm of micro-stem length adjustment in 5mm steps, while the size-specific design for frame & aero fork ensure the best experience regardless of rider height.
The CHASSIS includes frame, fork, headset, seatpost and the OPEN B.A.R. integrated one-piece bar/stem. The U.P. 2.0 ships from Mid September 2025 depending on your size. We can confirm this to you once we have determined your bar/stem dimension.
Frame Specifications.
880g (U.P.PER. 2.0)
995g (U.P. 2.0)
excl. metal parts (but incl. T47 threaded BB shell)
375g (U.P.PER. 2.0)
390g (U.P. 2.0)
Frame: XS/S/M/L/XL
Fork: XS/S/M/L/XL
Stem-bar: 60-130mm length, 380-430mm width
For more info, see OPEN B.A.R. geometry above and frame geometry below
Only compatible with OPEN U-Turn 2.0 forks
Only compatible with length-adjustable OPEN B.A.R. system
Option 1: Various standard colors, see webstore.
Option 2: Raw-Ready-To-Paint (RRTP)
For custom painting, start with RRTP and work with your own custom painter or one of our partners to create the frame of your dreams.
A clearcoat is recommended to protect against scratches and wear (but not required for UV protection). Some customers keep the frame RRTP.
For serious gravel and off-road (on any brand of bike), we recommend a rear derailleur with a clutch or cage damper for chain management. The U.P.(PER.) 2.0 is compatible with the following electronic groupsets:
- All Shimano GRX Di2
- All SRAM AXS
T47 threaded bottom bracket (internal cups) with 86mm wide BB shell
Shimano GRX 1x: 52T (Shimano offers up to 46T, aftermarket aero rings from for example WolfTooth available up to 52T)
SRAM AXS 1x: 52T (SRAM offers up to 50T, aftermarket aero rings from for example WolfTooth available up to 52T)
Shimano GRX 2x: all cranksets (maximum offered is 48-31T)
SRAM AXS 2x: all cranksets (maximum offered is to 50-37T)
100x12mm superlight Carbon-Ti X-12
160mm only
Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
142x12mm superlight Carbon-Ti X-12
160mm only
Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Bolt-on, removable
Custom Wolftooth chain catcher
Note: attaches to the mounting points for the front derailleur mount
Identical standard IS52/40 x 45o upper & lower bearing
These can be found at any competent bike store.
Round 27.2. Compatible with many brands and models including dropper and/or suspension seatposts.
Safe-pilot hole on seatpost (hole blocked by seatpost indicates sufficient insertion).
Integrated computer mount
Compatible with Garmin, Wahoo & Hammerhead (using Hammerhead's Wahoo-insert).
Integrated GoPro mount
Compatible with GoPro and other compatible devices (lights, etc).
We recommend Direct Drive indoor trainers only.
These are trainers where you remove the rear wheel of your bike and install the bike onto a cassette that is fixed onto the trainer.
Some of the most popular compatible Direct Drive indoor trainers are (but others may work too):
- Wahoo KICKRmove, KICKR, KICKR 2, KICKRcore
- Elite Justo 2, Rivo, Rivo Zwift cog&click, Avanti Zwift cog&click, Turno
- Tacx Neo 2T, Neo 3M, Flux 2, Flux S
IMPORTANT:
- Some trainers may require an adaptor to fit the frame. The U.P.(PER) 2.0 uses a 142x12 thru-axle with M12x1.0 thread.
- These trainers are compatible with our FRAME, but you must check compatibility with your GROUPSET. For example, not all trainers are compatible with 13s cassettes or may require an adaptor.
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 520 | 545 | 570 | 595 | 620 |
| Reach | 356 | 368 | 380 | 392 | 404 |
| Seattube length | 418 | 449 | 483 | 504 | 518 |
| Toptube length | 506 | 525 | 545 | 564 | 584 |
| Seattube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Headtube angle | 70.0° | 71.5° | 71.5° | 72.5° | 72.5° |
| BB drop | 82 | 77 | 75 | 73 | 72 |
| Front-center | 589 | 590 | 610 | 614 | 634 |
| Rear-center | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1000 | 1003 | 1024 | 1028 | 1049 |
| Standover height | 713 | 745 | 777 | 799 | 815 |
| Approx. rider height (cm) | < 165 | 160-171 | 169-180 | 178-191 | > 188 |
| Approx. rider height (in) | < 5'5 | 5'3-5'8 | 5'6-5'11 | 5'10-6'3 | > 6'2 |
Frame + Fork
OPEN B.A.R.
Seatpost
Headset
UDH RD Hanger
OPEN x Wolftooth chain catcher (except CONCE.PT)
Computer mount & GoPro mount
Noise-Reduction Foam Sleeves
Manual
