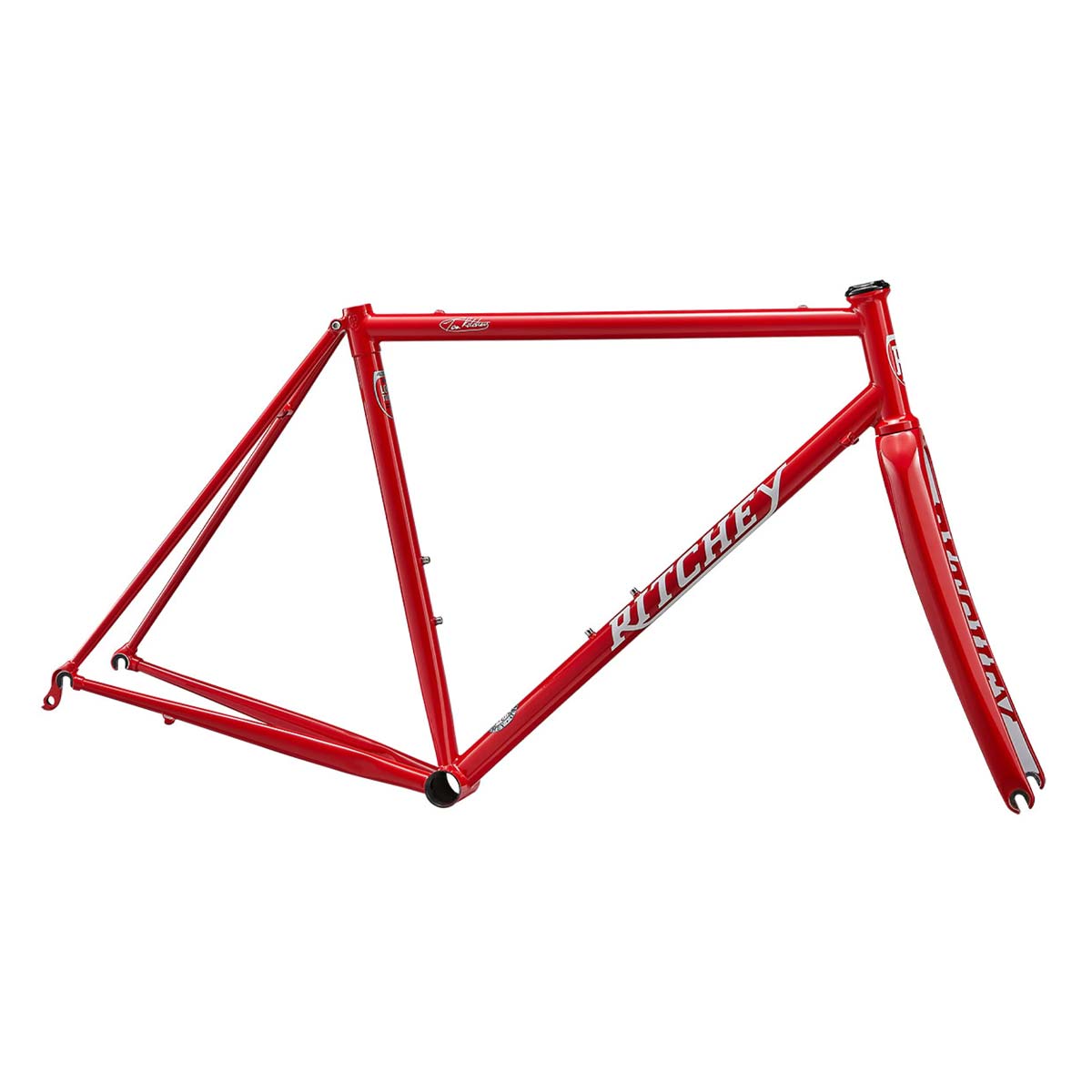

Ritchey Road Logic Signature Frameset - Glossy Red

Sale price £1,479.00

Shipping calculated at checkout

Size

Supply On Demand

We don't keep these in stock at the shop, but we can usually get hold of them pretty quickly.

Place your order and we'll ship it in 3-5 days.

They Say...

The Road Logic Signature Edition offers a riding experience steeped in more than 50 years of life experiences, framebuilding heritage, innovation, and exploration. It's a legacy that traces back to the 1970s, when Tom Ritchey built his first road frame in his parent's garage in northern California. Since then, Tom has continued to explore, experience, and innovate in ways that define the craft, and the Road Logic Signature Edition is the result of that expanding legacy: his prodigious experience with steel, and mastery of the subtleties and details gleaned from his tenure in the art of creating bicycles.

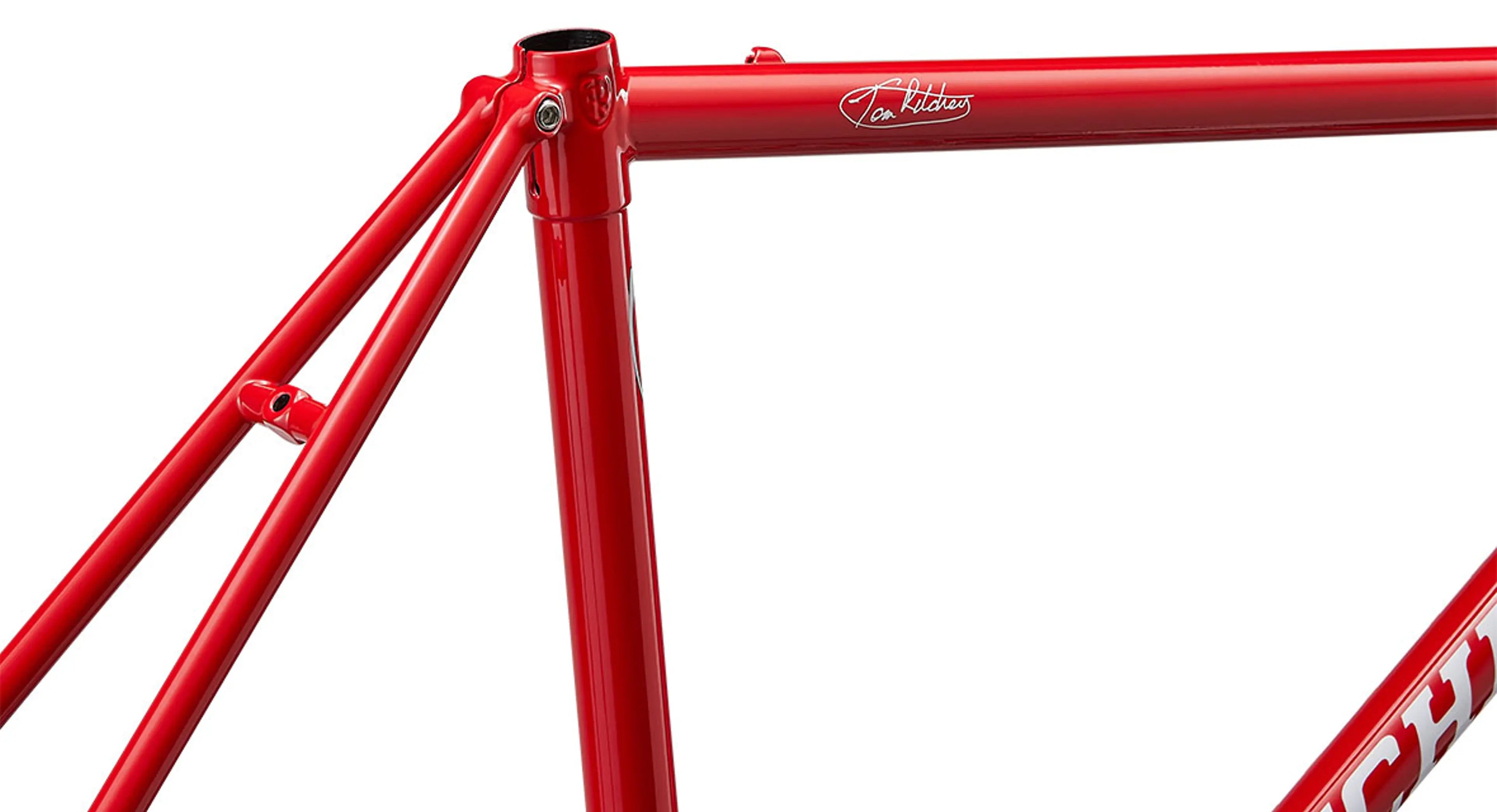

The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's sufficiently comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement. Bearing Tom Ritchey's signature on the top tube, it's a subtle reminder that this frame is a direct expression of his lifelong dedication to steel and ride quality.

A true modern classic, the Road Logic Signature Edition uses a heat-treated and triple-butted Ritchey Logic tubeset that was designed by Tom, and it features aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. Ritchey’s proprietary forged-and-machined integrated head tube uses standard drop-in bearings and saves 80 grams over a standard head tube design.

Wrapped in Ritchey Classic Red paint, the Road Logic Signature Edition also features a Ritchey Carbon Fork and spacing for up to 30c tires to deliver a lifetime of enjoyable pedal turns.

Frame
Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

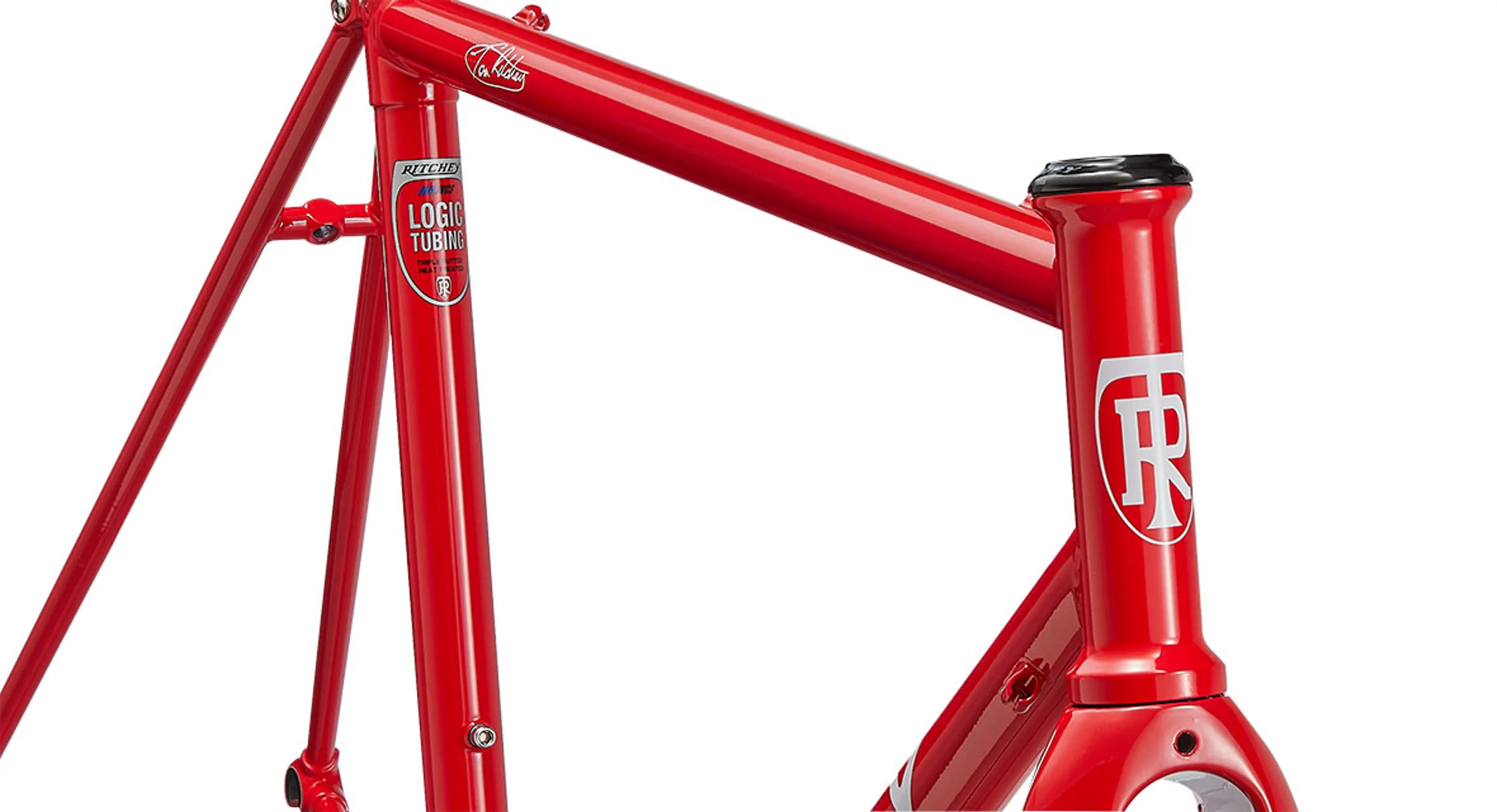

Ultra-light forged and machined straight 1-1/8" headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

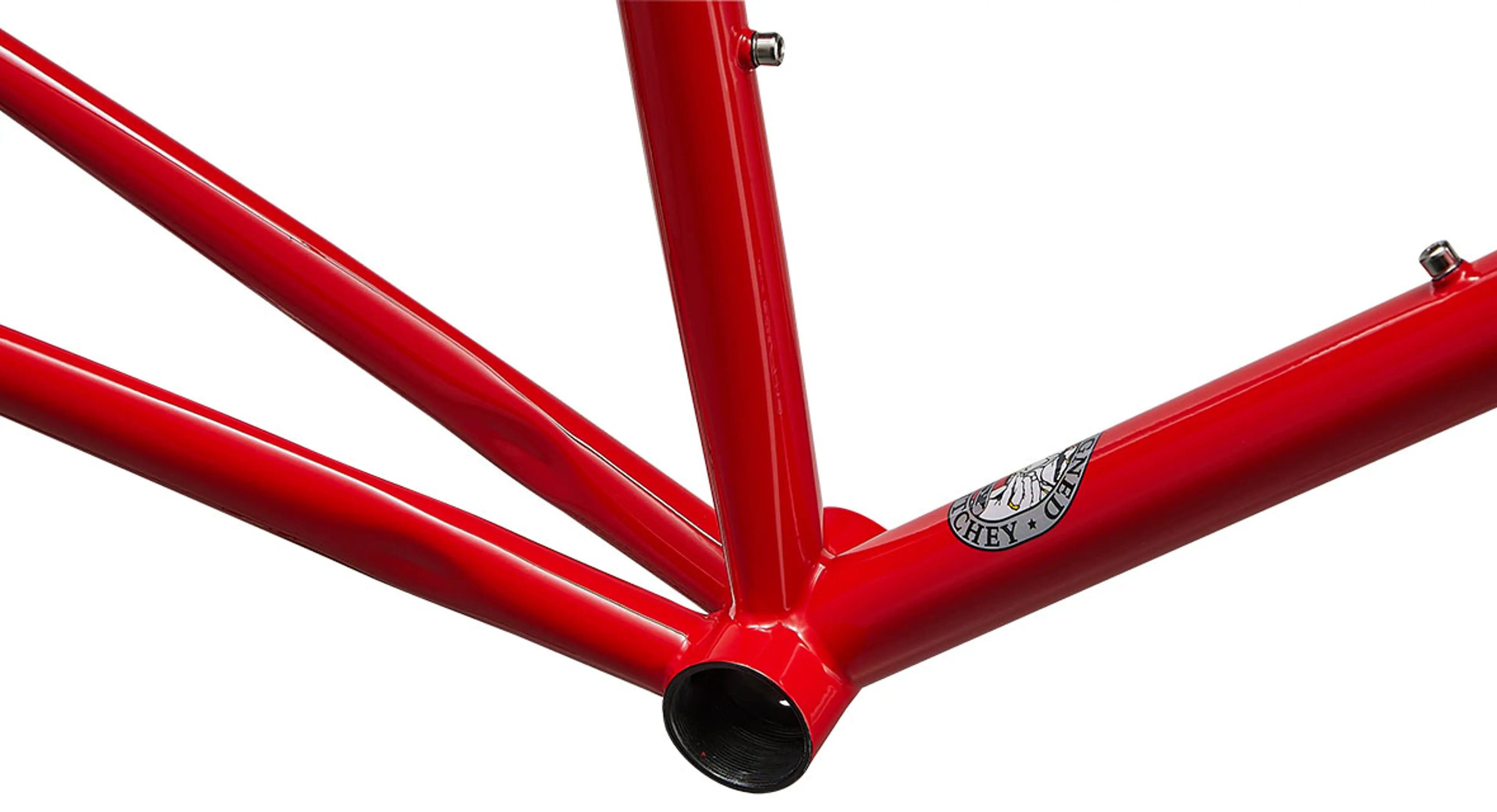

Bottom bracket: 68mm - English threaded
Crankset min/max ring size: 46/30t to 53/39t
Chainline: 44mm
Bottle cage mounts: 2
Standard Quick Release front and rear
External cable routing
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Fork
Ritchey WCS Carbon Road Fork included
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length: 300mm
Axle-crown: 371mm
Rake/Offset: 46mm (sizes 49/51/53cm) – 43mm (sizes 55/57/59cm)
30mm maximum spacers below stem
Tire Compatibility
Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)
Frame spacing: 38mm
Fork spacing: 40mm
Details
Sizes: 49 / 51 / 53 / 55 / 57 / 59cm
Frame weight: 1,750g (size 55)
Fork weight: 380g (uncut steerer)
ColorRitchey Classic Red
