Singular Swift Mk5 steel frameset

Regular price £950.00

Tax included

Shipping calculated at checkout

Size

Need Another Size?

Need a size that's not in stock? Drop us a line for the latest availability.

In stock with supplier - estimated dispatch time 1 to 2 weeks

We say...

The original was one fo the first production 29ers in the U.K! The latest version has all the updates you would want and none that you wouldn't.



They say...

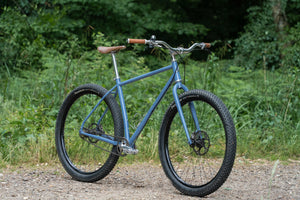

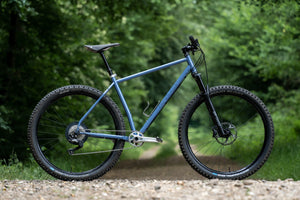

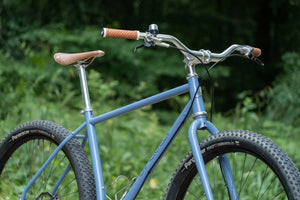

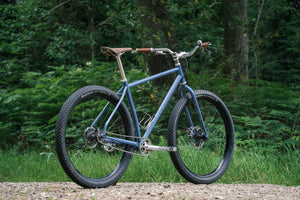

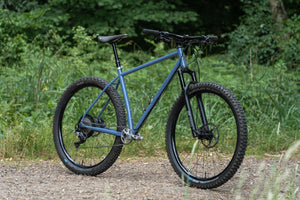

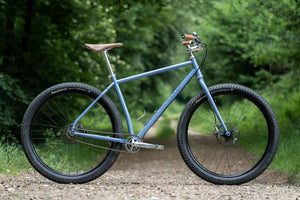

This is where it all began - a simple steel 29" wheeled hardtail mountain bike. The Swift was launched in 2006 at a time when 29" wheels were just entering the mainstream. A suspension capable do-it-all off-road machine the Swift rapidly won plaudits as a great riding, looking and incredibly versatile bike.

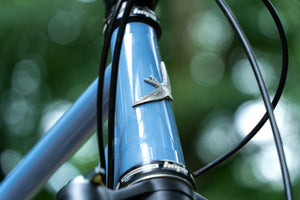

2023 sees the release of the latest incarnation of the Swift - the Mark 5. Now updated with a tapered headtube for suspension fork compatibility, thru axles front and rear, internal dropper post cable routing - while retaining the fantastic ride quality and handling for which the Swift is renowned.

We utilise a size specific selection of Taiwan made custom drawn triple butted 4130 Cro-Mo tubing.

We are now taking pre-orders on these frames with delivery expected at the end of November.

Frame specification

  • 34mm/44mm ID head-tube – for a tapered 1 1/8″ - 1 1/2" steerer fork

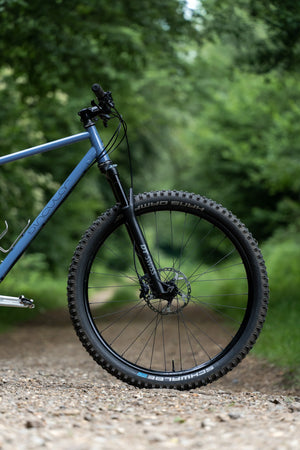

  • Suspension corrected for use with a 100-120mm travel suspension fork
  • Single chainring, max 42t on a 52mm chainline

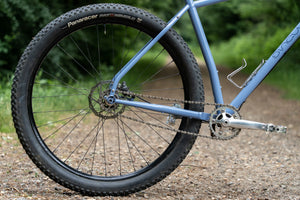

  • 73mm BSA threaded bottom bracket shell with eccentric insert

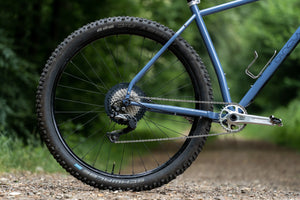

  • 148×12 boost thru axle (included)

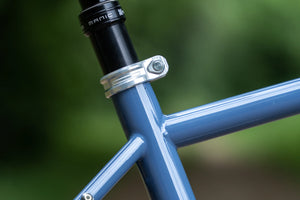

  • 31.6mm seatpost with 35mm clamp (included)
  • Port for internally routed dropper post cable
  • Clearance for up to 29×3″ tyres
  • Bolt-on cable guides on underside of down tube
  • Three bottle cage mounts – seat tube, down tube, underside of down tube
  • Post mount rear brake on the chainstay

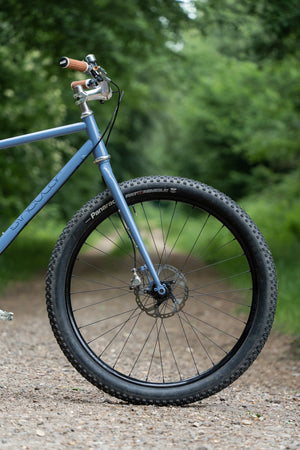

Fork specification

  • Tapered 1 1/8″ - 1 1/2" steerer
  • 483mm axle to crown - 100mm suspension corrected
  • Post mount brake
  • 110x15mm boost thru axle
  • Triple mounts on fork blades
  • Rack mounts
  • Mudguard/fender mounts
  • Hole for internal dynamo cable in right fork leg



Need a size that's not in stock? Drop us a line for the latest availability.
