What They Say...

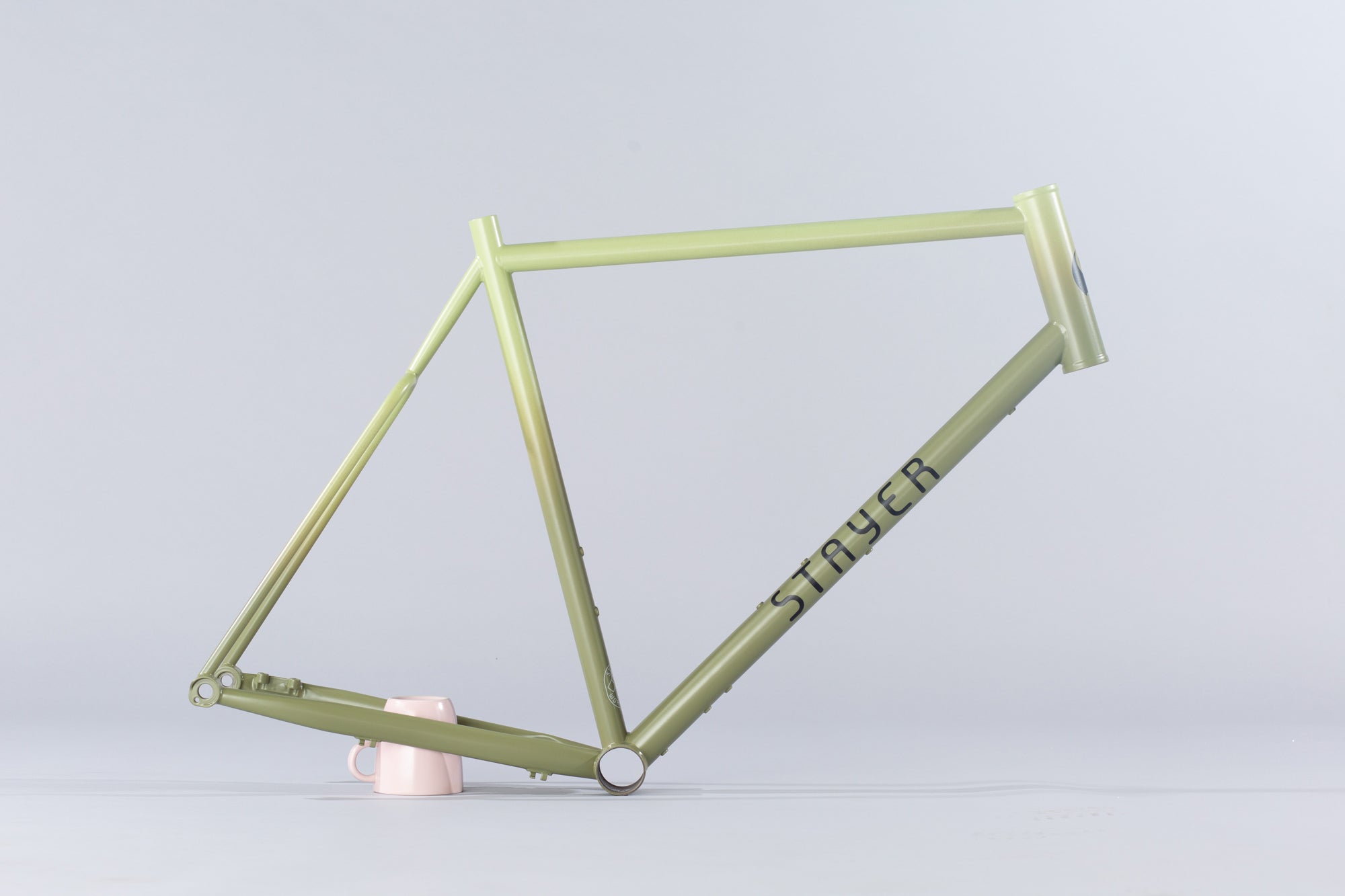

A Stayer Groadinger UG is a gravel bike built for adventure-groading and fast off-roadin’. The UG is a lightweight steel fun bike designed specifically with the ‘road-to-gravel-to-gnar’ ratio found most often when gravel riding in the UK. This do-it-all gravelling adventure-ready frame set is for 1X or 2X and a carbon or steel fork for packing up or packing light but never packing in.
Key features
-
Externally routed for Mechanical or ETAP
-
Seat Tube Internal Diameter: 27.2mm seat post compatibility
-
Seat Clamp Diameter: 30.0mm for easy adjustment and secure fitment
-
44mm Head Tube
-
Rear Spacing: 142mm x 12mm thru axle for modern wheel fitment
-
Tyre Clearance: 2.1″ x 650b or 45mm x 700c
-
Bottom Bracket: T47 threaded bottom bracket shell for secure, creak-free pedal performance.
-
Flat mount rear brake (max 160mm)
-
3 Bottle Cage Mounts: Included on the top and bottom of the down tube as well as the seat tube
- Rack and mudguard mounts
With clearance for maHOOsive 2.1inch tyres (650b wheels) or 45x700c, our UG (yoo-gee) frame has been tested in serious ultraGRoadie and ultragrav scenarios, as well as standing its ground as a bonafide ultraRoadie. It’s as full on an Ultra G bike as you could wish for or ever hope to need.
Frame construction
-
Handmade Steel Frame: Crafted from premium Columbus Zona tubing that has exceptional durability and performance.
-
TIG-Welded construction
-
Disc Brake Compatibility: Flat mount rear brake with a maximum rotor size of 160mm, providing powerful braking performance for fast-paced racing.
-
Designed for compatibility with thru-axle wheel fitment, using high-quality carbon forks, such as the Columbus Futura Cross+ or Enve Gravel Disc.
-
All frames come as standard in our rAwrAw finish but there is custom options from Stayer’s exclusive house finishes or full custom paint.
What's included in the box
-
Stayer Groadinger Frame
-
142x12mm thru axle
-
Rear mech hanger
-
External cable routing bosses (if required)
-
Stainless steel button head bolts for bottle cage bosses
