They Say...

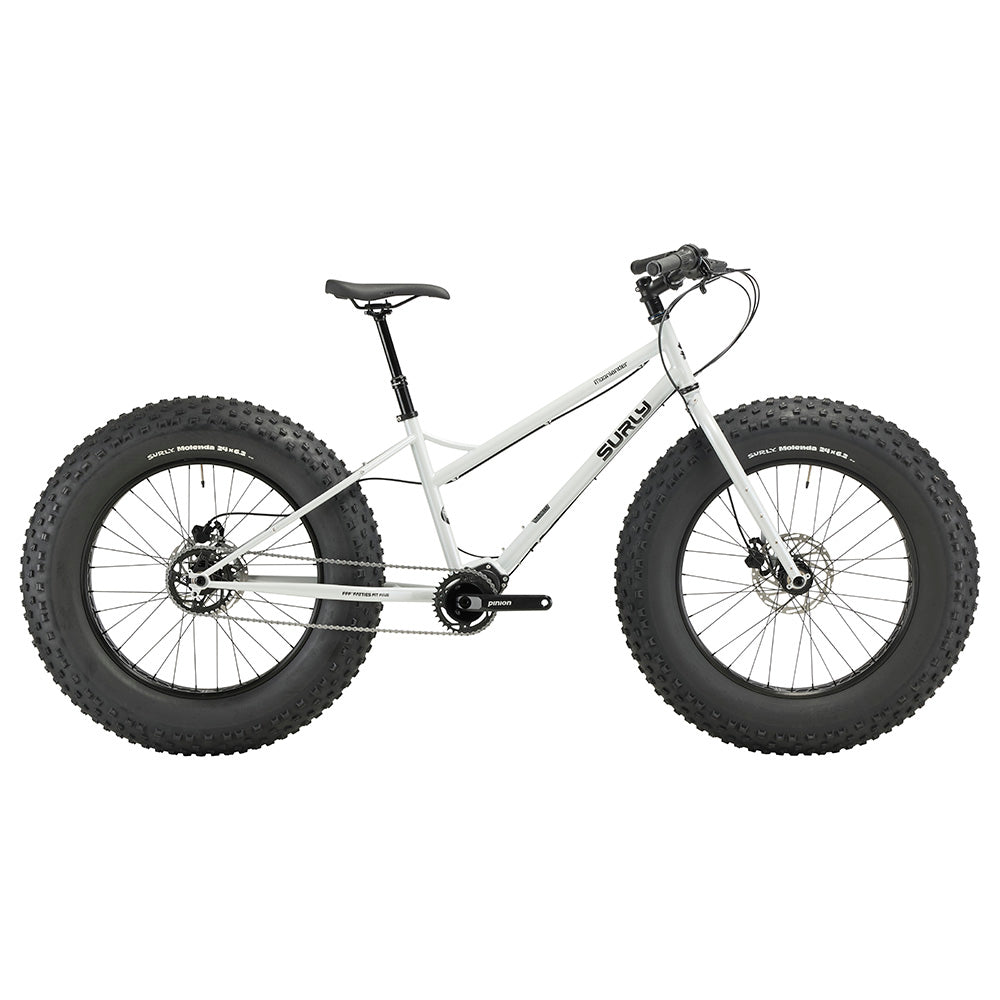

Designed to go where no normal fat bike can, the Surly Moonlander is for riders who want otherworldly capabilities on rocky shorelines, sand, snow, and desolate landscapes not yet discovered. While our proprietary 24 x 6.25" tyres surpass the limitations of current fat bikes, the Moonlander still rides like a normal bike, making it easier (and more fun) to navigate previously unrideable terrain. It’s the ultimate choice for explorers who itch for the next great adventure and aren’t afraid of what they might find.
Frameset
Frame: Surly Moonlander Frame - 100% Surly Chromoly steel. E.D. coated. Triple-butted main triangle. TIG-welded.
Fork: Surly Moonlander Fork - 100% Surly Chromoly steel. 1-1/8" straight steerer with tapered straight blade, TIG-welded, E.D. Coated. 51mm IS front standard disc mount. 197mm x 12mm thru-axle dropouts (axle included).
Colour: Lunar Dust Gray
Drivetrain
Front Derailleur: N/A
Gears: 9-speed Pinion gearbox
Cassette: 34t aluminium ring
Chain: KMC EPT
Chainset: Pinion for Surly crankset, with Pinion high-offset spider, 32t
Shifter: Pinion twist
Brakes and Rotors: Tektro HD M-285, Tektro, 180mm, 6-bolt
Components
Headset: Cane Creek 40
Stem: Promax, 31.8, 4-bolt
Handlebar: Surly Terminal
Grips: Velo Lock-on
Seatpost: TransX YSP15JL Dropper, 125mm travel (100mm travel on SM)
Saddle: WTB Volt
Wheels
Front Hub: 197x12mm, Novatec, 32h, Thru-Axle
Rear Hub: 197x12mm, Novatec, 32h, Thru-Axle
Rims: Surly Clown Royal 24", 100mm wide
Tyres: Surly Molenda 24 x 6.2"
